Testing interactions in bulk RNA-seq

Goal:

**Identify DEGs in “interaction term” using pairwise comparisons. **

What is “interaction term”?

In typical pairwise comparison, we found the DEGs between group ctrl and treatment (maybe at certain timepoints). However, if we have **strain and treatment **(two variables)(eg., 2*strains (WT, ero1) vs 2*treatments (25C, tm)), we can test the “interaction term”: In addition to discovering DEGs between control and treatment groups, we can also discover the DEGs in the interaction term strainero1.treatmenttm → DEGs are those genes that respond to the tm treatment differently due to different strains.

However, we SPLIT the samples to different sample sets before performing DESeq2.

The idea is that because an interaction term can appear in different sample sets

2*strains (WT, ero1) + 2*treatments (25C, tm)
3*strains (WT, ero1, eK) + 3*treatments (25C, tm, 35C) Both sample sets have the interaction term strainero1.treatmenttm → we perform the intersection of DEGs discovered in the same interaction terms from these sample sets

Workflow:

Split samples to 4 sample sets and discover DEGs in interaction terms
Using all sample (not split) to discover DEGs in interaction terms

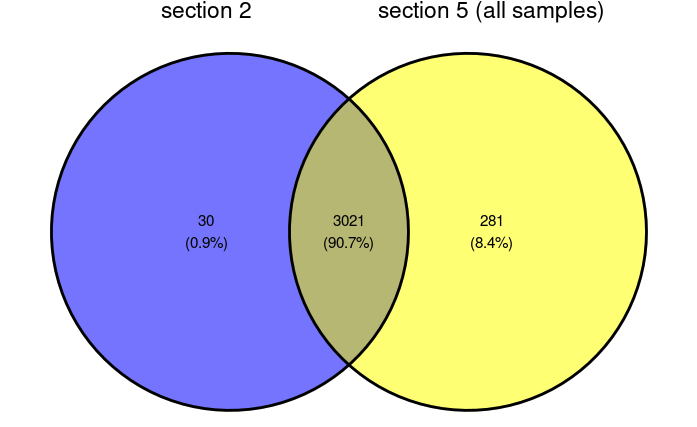

Intersection

Example:

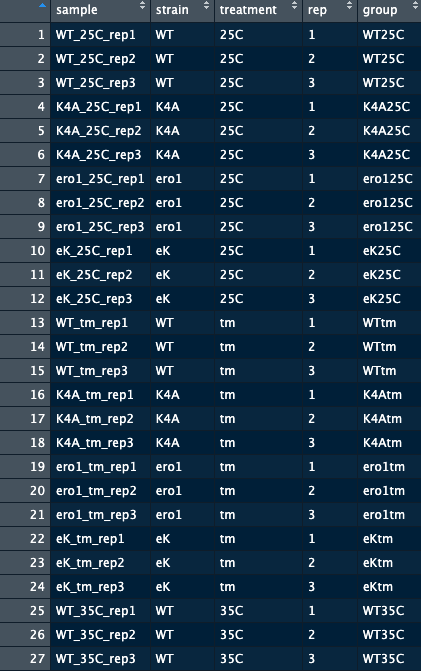

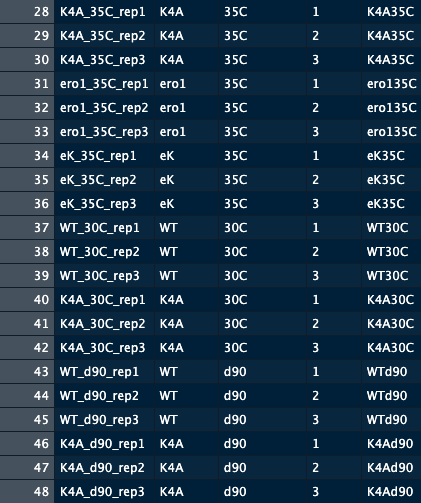

Samples (experimental design): 4 strains: WT, K4A, ero1, eK
5 treatments: 25C, tm, 35C, 30C, d90
3 replications: rep1 ~3

Library and Data Import

library(DESeq2)
library(ashr)
library(sva)    # for batch correction
library(corrplot)    # for correlation plot
library(ggvenn)    # for Venn Diagram
library(car)  # point labels without overlaps
library(umap) # umap
library(tibble)
library(readr)
library(ggplot2)
library(ggrepel)
library(EnhancedVolcano)

counts_raw <- read_delim("//counts_matirx.txt",
    delim = "\t", escape_double = FALSE,
    trim_ws = TRUE)

counts_raw <- counts_raw %>% column_to_rownames(var="Geneid")

metadata <- read_delim("metadata.txt", delim = "\t",
    escape_double = FALSE, trim_ws = TRUE)

geneID_transform <- read_delim("~//04_featureCounts/ID_table.txt",
    delim = "\t", escape_double = FALSE,
    trim_ws = TRUE)
names(geneID_transform)[1] <- c("Gene")

metadata$strain <- factor(metadata$strain, levels = c("WT", "K4A", "ero1", "eK"))
metadata$treatment <- factor(metadata$treatment, levels = c( "25C", "tm", "35C", "30C", "d90"))
metadata$rep <- factor(metadata$rep, levels = c(1,2,3))

metadata$group <- factor(paste0(metadata$strain,metadata$treatment))

Split samples to 4 sample sets and discover DEGs in interaction terms

Identify DEGs for the strainero1.treatmenttm interaction term.

Sample set 1: WT_25C / ero1_25C / WT_tm / ero1_tm

Subset

counts_raw_1 <- subset(counts_raw,
                       select = grepl("WT_25C|WT_tm|ero1_25C|ero1_tm",
                                     names(counts_raw)))

metadata_1 <- metadata[metadata$group %in% c("WT25C","WTtm","ero125C","ero1tm"),]

Pre-filter and DESeq2

# the read count cut-off of the low-expression genes
low_exp_read_count = 5
# minimum samples that express this gene (總共有 48 個 sample)
minimum_exp_sample = ncol(counts_raw_1)/2


dds_1 <- DESeqDataSetFromMatrix(countData= round(counts_raw_1),
                              colData= metadata_1,
                              design= ~ strain + treatment + strain:treatment + rep) # batch effect

keep <- rowSums(counts(dds_1) > low_exp_read_count) >= minimum_exp_sample
dds_1 <- dds_1[keep, ]

# 5901 genes

plotDispEsts: inspect the fit; this example uses fitType = local throughout

dds_wald_local_1 <- DESeq(dds_1,
              test = "Wald",
              fitType = "local",
              betaPrior = F)

summary(results(dds_wald_local_1))

out of 5901 with nonzero total read count
adjusted p-value < 0.1
LFC > 0 (up)       : 886, 15%
LFC < 0 (down)     : 1121, 19%
outliers [1]       : 11, 0.19%
low counts [2]     : 0, 0%
(mean count < 4)

Check resultsNames: the first factor level is the reference

dds_wald_local_1$strain
dds_wald_local_1$treatment
resultsNames(dds_wald_local_1)

[1] WT   WT   WT   ero1 ero1 ero1 WT   WT   WT   ero1 ero1 ero1
Levels: WT ero1
[1] 25C 25C 25C 25C 25C 25C tm  tm  tm  tm  tm  tm
Levels: 25C tm
[1] "Intercept"              "strain_ero1_vs_WT"      "treatment_tm_vs_25C"    "strainero1.treatmenttm"

DEGs of `strainero1.treatmenttm`

The treatment-induced change differs between WT and ero1.

Extract results of the interaction term `strainero1.treatmenttm`

result1_strainero1.treatmenttm <-results(dds_wald_local_1,
                                 name="strainero1.treatmenttm",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result1_strainero1.treatmenttm_df <- as.data.frame(result1_strainero1.treatmenttm)
result1_strainero1.treatmenttm_df <- result1_strainero1.treatmenttm_df[order(result1_strainero1.treatmenttm_df$padj),]




# check if any genes has baseMean = 0?
result1_strainero1.treatmenttm_df[result1_strainero1.treatmenttm_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result1_strainero1.treatmenttm_df[is.na(result1_strainero1.treatmenttm_df$pvalue) & is.na(result1_strainero1.treatmenttm_df$padj),]
# -> 11 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result1_strainero1.treatmenttm_df[is.na(result1_strainero1.treatmenttm_df$padj) & !is.na(result1_strainero1.treatmenttm_df$pvalue),]
# -> 有 0 個 genes 被 independent filtered

metadata(result1_strainero1.treatmenttm)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 4.248606
# as a result, 0% of genes were filtered out of the analysis


result1_strainero1.treatmenttm_df <- na.omit(result1_strainero1.treatmenttm_df) # 5890 gene

write.csv(result1_strainero1.treatmenttm_df, file = "DEG_Interaction/01_WT&ero1.vs.tm&25C/DESeq2_res_strainero1.treatmenttm_no.lfcShrink.csv")

lfcShrink (ashr)

# "ashr"
result1_strainero1.treatmenttm_shrink_ashr <- lfcShrink(dds_wald_local_1,
                                      type="ashr",
                                      res = result1_strainero1.treatmenttm)

############################
# -> ashr seems to be better
result1_strainero1.treatmenttm_shrink_ashr_df <- as.data.frame(result1_strainero1.treatmenttm_shrink_ashr)
result1_strainero1.treatmenttm_shrink_ashr_df <- result1_strainero1.treatmenttm_shrink_ashr_df[order(result1_strainero1.treatmenttm_shrink_ashr_df$padj),]

result1_strainero1.treatmenttm_shrink_ashr_df <- na.omit(result1_strainero1.treatmenttm_shrink_ashr_df) # 5890


write.csv(result1_strainero1.treatmenttm_shrink_ashr_df, file = "###")

DEG (padj<0.005): 972 genes

DEG1_strainero1.treatmenttm <- subset(result1_strainero1.treatmenttm_shrink_ashr_df,
                                 (result1_strainero1.treatmenttm_shrink_ashr_df$padj < 0.005))


DEG1_strainero1.treatmenttm <- tibble::rownames_to_column(DEG1_strainero1.treatmenttm, "Gene")
# -> 972 DEGs



DEG1_strainero1.treatmenttm <- merge(DEG1_strainero1.treatmenttm,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")



write.csv(DEG1_strainero1.treatmenttm, file = "###")

Identify DEGs for the strainero1.treatment35C interaction term.

Sample set 2: WT_25C / ero1_25C / WT_35C / ero1_35C

Subset

counts_raw_2 <- subset(counts_raw,
                       select = grepl("WT_25C|WT_35C|ero1_25C|ero1_35C",
                                     names(counts_raw)))

metadata_2 <- metadata[metadata$group %in% c("WT25C","WT35C","ero125C","ero135C"),]

Pre-filter and DESeq2

dds_2 <- DESeqDataSetFromMatrix(countData= round(counts_raw_2),
                              colData= metadata_2,
                              design= ~ strain + treatment + strain:treatment + rep)


# the read count cut-off of the low-expression genes
low_exp_read_count = 5
# minimum samples that express this gene (總共有 48 個 sample)
minimum_exp_sample = ncol(counts_raw_2)/2

keep <- rowSums(counts(dds_2) > low_exp_read_count) >= minimum_exp_sample
dds_2 <- dds_2[keep, ]

# 5886 genes

plotDispEsts: inspect the fit; this example uses fitType = local throughout

dds_wald_local_2 <- DESeq(dds_2,
              test = "Wald",
              fitType = "local",
              betaPrior = F)

summary(results(dds_wald_local_2))

out of 5886 with nonzero total read count
adjusted p-value < 0.1
LFC > 0 (up)       : 1974, 34%
LFC < 0 (down)     : 2039, 35%
outliers [1]       : 11, 0.19%
low counts [2]     : 0, 0%
(mean count < 5)

Check ResultNames

dds_wald_local_2$strain
dds_wald_local_2$treatment
resultsNames(dds_wald_local_2)

[1] WT   WT   WT   ero1 ero1 ero1 WT   WT   WT   ero1 ero1 ero1
Levels: WT ero1
 [1] 25C 25C 25C 25C 25C 25C 35C 35C 35C 35C 35C 35C
Levels: 25C 35C
[1] "Intercept"               "strain_ero1_vs_WT"       "treatment_35C_vs_25C"    "strainero1.treatment35C"

DEGs of `strainero1.treatment35C`

Extract results of the interaction term `strainero1.treatment35C`

result2_strainero1.treatment35C <-results(dds_wald_local_2,
                                 name="strainero1.treatment35C",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result2_strainero1.treatment35C_df <- as.data.frame(result2_strainero1.treatment35C)
result2_strainero1.treatment35C_df <- result2_strainero1.treatment35C_df[order(result2_strainero1.treatment35C_df$padj),]




# check if any genes has baseMean = 0?
result2_strainero1.treatment35C_df[result2_strainero1.treatment35C_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result2_strainero1.treatment35C_df[is.na(result2_strainero1.treatment35C_df$pvalue) & is.na(result2_strainero1.treatment35C_df$padj),]
# -> 11 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result2_strainero1.treatment35C_df[is.na(result2_strainero1.treatment35C_df$padj) & !is.na(result2_strainero1.treatment35C_df$pvalue),]
# -> 有 0 個 genes 被 independent filtered

metadata(result2_strainero1.treatment35C)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 4.564443
# as a result, 0% of genes were filtered out of the analysis


result2_strainero1.treatment35C_df <- na.omit(result2_strainero1.treatment35C_df) # 5875 gene

write.csv(result2_strainero1.treatment35C_df, file = "###")

lfcShrink (ashr)

# "ashr"
result2_strainero1.treatment35C_shrink_ashr <- lfcShrink(dds_wald_local_2,
                                      type="ashr",
                                      res = result2_strainero1.treatment35C)



############################
# -> ashr seems to be better
result2_strainero1.treatment35C_shrink_ashr_df <- as.data.frame(result2_strainero1.treatment35C_shrink_ashr)
result2_strainero1.treatment35C_shrink_ashr_df <- result2_strainero1.treatment35C_shrink_ashr_df[order(result2_strainero1.treatment35C_shrink_ashr_df$padj),]

result2_strainero1.treatment35C_shrink_ashr_df <- na.omit(result2_strainero1.treatment35C_shrink_ashr_df) # 5875 genes


write.csv(result2_strainero1.treatment35C_shrink_ashr_df, file = "###")

DEG (padj<0.005): 3051 genes

DEG2_strainero1.treatment35C <- subset(result2_strainero1.treatment35C_shrink_ashr_df,
                                 (result2_strainero1.treatment35C_shrink_ashr_df$padj < 0.005))


DEG2_strainero1.treatment35C <- tibble::rownames_to_column(DEG2_strainero1.treatment35C, "Gene")
# -> 3051 DEGs



DEG2_strainero1.treatment35C <- merge(DEG2_strainero1.treatment35C,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")



write.csv(DEG2_strainero1.treatment35C, file = "###")

Identify DEGs for straineK.treatmenttm, using ero1 as the reference.

Sample set 3: ero1_25C / eK_25C / ero1_tm / eK_tm

Subset

counts_raw_3 <- subset(counts_raw,
                       select = grepl("eK_25C|eK_tm|ero1_25C|ero1_tm",
                                     names(counts_raw)))

metadata_3 <- metadata[metadata$group %in% c("ero125C","eK25C","ero1tm","eKtm"),]

Pre-filter and DESeq2

dds_3 <- DESeqDataSetFromMatrix(countData= round(counts_raw_3),
                              colData= metadata_3,
                              design= ~ strain + treatment + strain:treatment + rep)


# the read count cut-off of the low-expression genes
low_exp_read_count = 5
# minimum samples that express this gene (總共有 48 個 sample)
minimum_exp_sample = ncol(counts_raw_3)/2
keep <- rowSums(counts(dds_3) > low_exp_read_count) >= minimum_exp_sample
dds_3 <- dds_3[keep, ]

# 5924 genes

plotDispEsts: inspect the fit; this example uses fitType = local throughout

dds_wald_local_3 <- DESeq(dds_3,
              test = "Wald",
              fitType = "local",
              betaPrior = F)

summary(results(dds_wald_local_3))

out of 5924 with nonzero total read count
adjusted p-value < 0.1
LFC > 0 (up)       : 746, 13%
LFC < 0 (down)     : 644, 11%
outliers [1]       : 9, 0.15%
low counts [2]     : 0, 0%
(mean count < 4)

Check ResultNames

dds_wald_local_3$strain
dds_wald_local_3$treatment
resultsNames(dds_wald_local_3)

[1] ero1 ero1 ero1 eK   eK   eK   ero1 ero1 ero1 eK   eK   eK
Levels: ero1 eK
 [1] 25C 25C 25C 25C 25C 25C tm  tm  tm  tm  tm  tm
Levels: 25C tm
[1] "Intercept"            "strain_eK_vs_ero1"    "treatment_tm_vs_25C"  "straineK.treatmenttm"

DEGs of `straineK.treatmenttm`

Extract results of the interaction term `straineK.treatmenttm`

result3_straineK.treatmenttm <-results(dds_wald_local_3,
                                 name="straineK.treatmenttm",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result3_straineK.treatmenttm_df <- as.data.frame(result3_straineK.treatmenttm)
result3_straineK.treatmenttm_df <- result3_straineK.treatmenttm_df[order(result3_straineK.treatmenttm_df$padj),]




# check if any genes has baseMean = 0?
result3_straineK.treatmenttm_df[result3_straineK.treatmenttm_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result3_straineK.treatmenttm_df[is.na(result3_straineK.treatmenttm_df$pvalue) & is.na(result3_straineK.treatmenttm_df$padj),]
# -> 9 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result3_straineK.treatmenttm_df[is.na(result3_straineK.treatmenttm_df$padj) & !is.na(result3_straineK.treatmenttm_df$pvalue),]
# -> 有 0 個 genes 被 independent filtered

metadata(result3_straineK.treatmenttm)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 4.248606
# as a result, 0% of genes were filtered out of the analysis


result3_straineK.treatmenttm_df <- na.omit(result3_straineK.treatmenttm_df) # 5915 gene

write.csv(result3_straineK.treatmenttm_df, file = "###")

lfcShrink (ashr)

# "ashr"
result3_straineK.treatmenttm_shrink_ashr <- lfcShrink(dds_wald_local_3,
                                      type="ashr",
                                      res = result3_straineK.treatmenttm)


############################
# -> ashr seems to be better
result3_straineK.treatmenttm_shrink_ashr_df <- as.data.frame(result3_straineK.treatmenttm_shrink_ashr)
result3_straineK.treatmenttm_shrink_ashr_df <- result3_straineK.treatmenttm_shrink_ashr_df[order(result3_straineK.treatmenttm_shrink_ashr_df$padj),]

result3_straineK.treatmenttm_shrink_ashr_df <- na.omit(result3_straineK.treatmenttm_shrink_ashr_df) # 5915 genes


write.csv(result3_straineK.treatmenttm_shrink_ashr_df, file = "###")

DEG (padj<0.005): 636 genes

DEG3_straineK.treatmenttm <- subset(result3_straineK.treatmenttm_shrink_ashr_df,
                                 (result3_straineK.treatmenttm_shrink_ashr_df$padj < 0.005))


DEG3_straineK.treatmenttm <- tibble::rownames_to_column(DEG3_straineK.treatmenttm, "Gene")
# -> 636 DEGs



DEG3_straineK.treatmenttm <- merge(DEG3_straineK.treatmenttm,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")



write.csv(DEG3_straineK.treatmenttm, file = "###")

Identify DEGs for straineK.treatment35C, using ero1 as the reference.

Sample set 4: ero1_25C / eK_25C / ero1_35C / eK_35C

Subset

counts_raw_4 <- subset(counts_raw,
                       select = grepl("eK_25C|eK_35C|ero1_25C|ero1_35C",
                                     names(counts_raw)))

metadata_4 <- metadata[metadata$group %in% c("ero125C","eK25C","ero135C","eK35C"),]

Pre-filter and DESeq2

dds_4 <- DESeqDataSetFromMatrix(countData= round(counts_raw_4),
                              colData= metadata_4,
                              design= ~ strain + treatment + strain:treatment + rep)


low_exp_read_count = 5
# minimum samples that express this gene (總共有 48 個 sample)
minimum_exp_sample = ncol(counts_raw_4)/2

# 至少在 >= 6 個 sample 中有 >5 的表達
keep <- rowSums(counts(dds_4) > low_exp_read_count) >= minimum_exp_sample
dds_4 <- dds_4[keep, ]

# 5945 genes

plotDispEsts: inspect the fit; this example uses fitType = local throughout

dds_wald_local_4 <- DESeq(dds_4,
              test = "Wald",
              fitType = "local",
              betaPrior = F)

summary(results(dds_wald_local_4))

out of 5945 with nonzero total read count
adjusted p-value < 0.1
LFC > 0 (up)       : 689, 12%
LFC < 0 (down)     : 557, 9.4%
outliers [1]       : 9, 0.15%
low counts [2]     : 0, 0%
(mean count < 5)

Check ResultNames

dds_wald_local_4$strain
dds_wald_local_4$treatment
resultsNames(dds_wald_local_4)

[1] ero1 ero1 ero1 eK   eK   eK   ero1 ero1 ero1 eK   eK   eK
Levels: ero1 eK
 [1] 25C 25C 25C 25C 25C 25C 35C 35C 35C 35C 35C 35C
Levels: 25C 35C
[1] "Intercept"             "strain_eK_vs_ero1"     "treatment_35C_vs_25C"  "straineK.treatment35C"

DEGs of `straineK.treatment35C`

Extract results of the interaction term `straineK.treatment35C`

result4_straineK.treatment35C <-results(dds_wald_local_4,
                                 name="straineK.treatment35C",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result4_straineK.treatment35C_df <- as.data.frame(result4_straineK.treatment35C)
result4_straineK.treatment35C_df <- result4_straineK.treatment35C_df[order(result4_straineK.treatment35C_df$padj),]




# check if any genes has baseMean = 0?
result4_straineK.treatment35C_df[result4_straineK.treatment35C_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result4_straineK.treatment35C_df[is.na(result4_straineK.treatment35C_df$pvalue) & is.na(result4_straineK.treatment35C_df$padj),]
# -> 9 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result4_straineK.treatment35C_df[is.na(result4_straineK.treatment35C_df$padj) & !is.na(result4_straineK.treatment35C_df$pvalue),]
# -> 有 0 個 genes 被 independent filtered

metadata(result4_straineK.treatment35C)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 4.248606
# as a result, 0% of genes were filtered out of the analysis


result4_straineK.treatment35C_df <- na.omit(result4_straineK.treatment35C_df) # 5936 gene

write.csv(result4_straineK.treatment35C_df, file = "###")

lfcShrink

# "ashr"
result4_straineK.treatment35C_shrink_ashr <- lfcShrink(dds_wald_local_4,
                                      type="ashr",
                                      res = result4_straineK.treatment35C)

############################
# -> ashr seems to be better
result4_straineK.treatment35C_shrink_ashr_df <- as.data.frame(result4_straineK.treatment35C_shrink_ashr)
result4_straineK.treatment35C_shrink_ashr_df <- result4_straineK.treatment35C_shrink_ashr_df[order(result4_straineK.treatment35C_shrink_ashr_df$padj),]

result4_straineK.treatment35C_shrink_ashr_df <- na.omit(result4_straineK.treatment35C_shrink_ashr_df)


write.csv(result4_straineK.treatment35C_shrink_ashr_df, file = "###")

DEG (padj<0.005): 636 genes

DEG4_straineK.treatment35C <- subset(result4_straineK.treatment35C_shrink_ashr_df,
                                 (result4_straineK.treatment35C_shrink_ashr_df$padj < 0.005))


DEG4_straineK.treatment35C <- tibble::rownames_to_column(DEG4_straineK.treatment35C, "Gene")
# -> 517 DEGs



DEG4_straineK.treatment35C <- merge(DEG4_straineK.treatment35C,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")



write.csv(DEG4_straineK.treatment35C, file = "###")

Using all sample (not split) to discover DEGs in interaction terms

WT_25C / ero1_25C / WT_tm / ero1_tm / WT_35C / ero1_35C / eK_25C / eK_tm / eK_35C

Subset all necessary samples

counts_raw_5 <- subset(counts_raw,
                       select = grepl("WT_25C|WT_tm|WT_35C|ero1_25C|ero1_tm|ero1_35C|eK_25C|eK_tm|eK_35C",
                                     names(counts_raw)))

metadata_5 <- metadata[metadata$group %in% c("WT25C","WTtm","ero125C","ero1tm","WT35C","ero135C","eK25C","eKtm","eK35C"),]

Pre-filter and DESeq2

dds_5 <- DESeqDataSetFromMatrix(countData= round(counts_raw_5),
                              colData= metadata_5,
                              design= ~ strain + treatment + strain:treatment + rep)


# the read count cut-off of the low-expression genes
low_exp_read_count = 5
# minimum samples that express this gene
minimum_exp_sample = ncol(counts_raw_5)/2

# 至少在 >= 6 個 sample 中有 >5 的表達
keep <- rowSums(counts(dds_5) > low_exp_read_count) >= minimum_exp_sample
dds_5 <- dds_5[keep, ]

# 5927 genes

plotDispEsts: inspect the fit; this example uses fitType = local throughout

dds_wald_local_5 <- DESeq(dds_5,
              test = "Wald",
              fitType = "local",
              betaPrior = F)



summary(results(dds_wald_local_5))

out of 5927 with nonzero total read count
adjusted p-value < 0.1
LFC > 0 (up)       : 1953, 33%
LFC < 0 (down)     : 1910, 32%
outliers [1]       : 8, 0.13%
low counts [2]     : 0, 0%
(mean count < 5)

Check ResultNames

dds_wald_local_5$strain
dds_wald_local_5$treatment
resultsNames(dds_wald_local_5)

[1] WT   WT   WT   ero1 ero1 ero1 eK   eK   eK   WT   WT   WT   ero1 ero1 ero1 eK   eK   eK   WT   WT   WT   ero1 ero1 ero1 eK   eK   eK
Levels: WT ero1 eK
 [1] 25C 25C 25C 25C 25C 25C 25C 25C 25C tm  tm  tm  tm  tm  tm  tm  tm  tm  35C 35C 35C 35C 35C 35C 35C 35C 35C
Levels: 25C tm 35C
[1] "Intercept"               "strain_ero1_vs_WT"       "strain_eK_vs_WT"         "treatment_tm_vs_25C"     "treatment_35C_vs_25C"
	[6] "strainero1.ewq"  "straineK.treatmenttm"    "strainero1.treatment35C" "straineK.treatment35C"

Intersection

`strainero1.treatmenttm`

In order to compare with section 1, reference strain has to be WT

dds_wald_local_5$strain <- relevel(dds_wald_local_5$strain, ref="WT")

dds_wald_local_5 <- nbinomWaldTest(dds_wald_local_5)

# check
resultsNames(dds_wald_local_5)

Extract results of the interaction term `strainero1.treatmenttm`

result5_strainero1.treatmenttm <-results(dds_wald_local_5,
                                 name="strainero1.treatmenttm",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result5_strainero1.treatmenttm_df <- as.data.frame(result5_strainero1.treatmenttm)
result5_strainero1.treatmenttm_df <- result5_strainero1.treatmenttm_df[order(result5_strainero1.treatmenttm_df$padj),]




# check if any genes has baseMean = 0?
result5_strainero1.treatmenttm_df[result5_strainero1.treatmenttm_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result5_strainero1.treatmenttm_df[is.na(result5_strainero1.treatmenttm_df$pvalue) & is.na(result5_strainero1.treatmenttm_df$padj),]
# -> 8 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result5_strainero1.treatmenttm_df[is.na(result5_strainero1.treatmenttm_df$padj) & !is.na(result5_strainero1.treatmenttm_df$pvalue),]
# -> 有 0 個 genes 被 independent filtered

metadata(result5_strainero1.treatmenttm)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 5.358176
# as a result, 0% of genes were filtered out of the analysis


result5_strainero1.treatmenttm_df <- na.omit(result5_strainero1.treatmenttm_df) # -> 5919 gene

write.csv(result5_strainero1.treatmenttm_df, file = "###")

lfcShrink

# "ashr"
result5_strainero1.treatmenttm_shrink_ashr <- lfcShrink(dds_wald_local_5,
                                      type="ashr",
                                      res = result5_strainero1.treatmenttm)

############################
# -> ashr seems to be better
result5_strainero1.treatmenttm_shrink_ashr_df <- as.data.frame(result5_strainero1.treatmenttm_shrink_ashr)
result5_strainero1.treatmenttm_shrink_ashr_df <- result5_strainero1.treatmenttm_shrink_ashr_df[order(result5_strainero1.treatmenttm_shrink_ashr_df$padj),]

result5_strainero1.treatmenttm_shrink_ashr_df <- na.omit(result5_strainero1.treatmenttm_shrink_ashr_df)


write.csv(result5_strainero1.treatmenttm_shrink_ashr_df, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DESeq2_res_strainero1.treatmenttm_lfcShrink.csv")

DEG (padj<0.005): 1053 genes

DEG5_strainero1.treatmenttm <- subset(result5_strainero1.treatmenttm_shrink_ashr_df,
                                 (result5_strainero1.treatmenttm_shrink_ashr_df$padj < 0.005))


DEG5_strainero1.treatmenttm <- tibble::rownames_to_column(DEG5_strainero1.treatmenttm, "Gene")
# -> 1053 DEGs



DEG5_strainero1.treatmenttm <- merge(DEG5_strainero1.treatmenttm,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")

write.csv(DEG5_strainero1.treatmenttm, file = "###")

ggvenn: compare with section 3 DEG

ggvenn(list('section 1' = DEG1_strainero1.treatmenttm$Gene,
            'section 5 (all samples)' = DEG5_strainero1.treatmenttm$Gene),
       c("section 1",
         "section 5 (all samples)"))

Export these intersected 904 genes

DEG5_DEG1_strainero1.treatmenttm <-
DEG5_strainero1.treatmenttm[DEG5_strainero1.treatmenttm$Gene %in% intersect(DEG1_strainero1.treatmenttm$Gene,DEG5_strainero1.treatmenttm$Gene),]

write.csv(DEG5_DEG1_strainero1.treatmenttm, file = "###")

`strainero1.treatment35C`

In order to compare with section 2, reference strain has to be WT

dds_wald_local_5$strain <- relevel(dds_wald_local_5$strain, ref="WT")

dds_wald_local_5 <- nbinomWaldTest(dds_wald_local_5)

# check
resultsNames(dds_wald_local_5)

Extract results of the interaction term `strainero1.treatment35C`

result5_strainero1.treatment35C <-results(dds_wald_local_5,
                                 name="strainero1.treatment35C",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result5_strainero1.treatment35C_df <- as.data.frame(result5_strainero1.treatment35C)
result5_strainero1.treatment35C_df <- result5_strainero1.treatment35C_df[order(result5_strainero1.treatment35C_df$padj),]




# check if any genes has baseMean = 0?
result5_strainero1.treatment35C_df[result5_strainero1.treatment35C_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result5_strainero1.treatment35C_df[is.na(result5_strainero1.treatment35C_df$pvalue) & is.na(result5_strainero1.treatment35C_df$padj),]
# -> 8 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result5_strainero1.treatment35C_df[is.na(result5_strainero1.treatment35C_df$padj) & !is.na(result5_strainero1.treatment35C_df$pvalue),]
# -> 有 0 個 genes 被 independent filtered

metadata(result5_strainero1.treatment35C)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 5.358176
# as a result, 0% of genes were filtered out of the analysis


result5_strainero1.treatment35C_df <- na.omit(result5_strainero1.treatment35C_df) # -> 5919 gene

write.csv(result5_strainero1.treatment35C_df, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DESeq2_res_strainero1.treatment35C_no.lfcShrink.csv")

lfcShrink

# "ashr"
result5_strainero1.treatment35C_shrink_ashr <- lfcShrink(dds_wald_local_5,
                                      type="ashr",
                                      res = result5_strainero1.treatment35C)

############################
# -> ashr seems to be better
result5_strainero1.treatment35C_shrink_ashr_df <- as.data.frame(result5_strainero1.treatment35C_shrink_ashr)
result5_strainero1.treatment35C_shrink_ashr_df <- result5_strainero1.treatment35C_shrink_ashr_df[order(result5_strainero1.treatment35C_shrink_ashr_df$padj),]

result5_strainero1.treatment35C_shrink_ashr_df <- na.omit(result5_strainero1.treatment35C_shrink_ashr_df)


write.csv(result5_strainero1.treatment35C_shrink_ashr_df, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DESeq2_res_strainero1.treatment35C_lfcShrink.csv")

DEG (padj<0.005): 3302 genes

DEG5_strainero1.treatment35C <- subset(result5_strainero1.treatment35C_shrink_ashr_df,
                                 (result5_strainero1.treatment35C_shrink_ashr_df$padj < 0.005))


DEG5_strainero1.treatment35C <- tibble::rownames_to_column(DEG5_strainero1.treatment35C, "Gene")
# -> 3302 genes



DEG5_strainero1.treatment35C <- merge(DEG5_strainero1.treatment35C,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")

write.csv(DEG5_strainero1.treatment35C, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DEGs_strainero1.treatment35C.csv")

ggvenn: compare with section 3 DEG

ggvenn(list('section 2' = DEG2_strainero1.treatment35C$Gene,
            'section 5 (all samples)' = DEG5_strainero1.treatment35C$Gene),
       c("section 2",
         "section 5 (all samples)"))

Export these intersected 3021 genes

DEG5_DEG2_strainero1.treatment35C <-
DEG5_strainero1.treatment35C[DEG5_strainero1.treatment35C$Gene %in% intersect(DEG2_strainero1.treatment35C$Gene,DEG5_strainero1.treatment35C$Gene),]

write.csv(DEG5_DEG2_strainero1.treatment35C, file = "DEG_Interaction/08_intersect-02_05/DEGs_strainero1.treatment35C.csv")

`straineK.treatmenttm`

In order to compare with section 3, reference strain has to be ero1

dds_wald_local_5$strain <- relevel(dds_wald_local_5$strain, ref="ero1")

dds_wald_local_5 <- nbinomWaldTest(dds_wald_local_5)

# check
resultsNames(dds_wald_local_5)

Extract results of the interaction term `straineK.treatmenttm`

result5_straineK.treatmenttm <-results(dds_wald_local_5,
                                 name="straineK.treatmenttm",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result5_straineK.treatmenttm_df <- as.data.frame(result5_straineK.treatmenttm)
result5_straineK.treatmenttm_df <- result5_straineK.treatmenttm_df[order(result5_straineK.treatmenttm_df$padj),]




# check if any genes has baseMean = 0?
result5_straineK.treatmenttm_df[result5_straineK.treatmenttm_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result5_straineK.treatmenttm_df[is.na(result5_straineK.treatmenttm_df$pvalue) & is.na(result5_straineK.treatmenttm_df$padj),]
# -> 8 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result5_straineK.treatmenttm_df[is.na(result5_straineK.treatmenttm_df$padj) & !is.na(result5_straineK.treatmenttm_df$pvalue),]
# -> 有 0 個 genes 被 independent filtered

metadata(result5_straineK.treatmenttm)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 5.358176
# as a result, 0% of genes were filtered out of the analysis


result5_straineK.treatmenttm_df <- na.omit(result5_straineK.treatmenttm_df) # -> 5919 gene

write.csv(result5_straineK.treatmenttm_df, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DESeq2_res_straineK.treatmenttm_no.lfcShrink.csv")

lfcShrink

# "ashr"
result5_straineK.treatmenttm_shrink_ashr <- lfcShrink(dds_wald_local_5,
                                      type="ashr",
                                      res = result5_straineK.treatmenttm)

############################
# -> ashr seems to be better
result5_straineK.treatmenttm_shrink_ashr_df <- as.data.frame(result5_straineK.treatmenttm_shrink_ashr)
result5_straineK.treatmenttm_shrink_ashr_df <- result5_straineK.treatmenttm_shrink_ashr_df[order(result5_straineK.treatmenttm_shrink_ashr_df$padj),]

result5_straineK.treatmenttm_shrink_ashr_df <- na.omit(result5_straineK.treatmenttm_shrink_ashr_df)


write.csv(result5_straineK.treatmenttm_shrink_ashr_df, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DESeq2_res_straineK.treatmenttm_lfcShrink.csv")

DEG (padj<0.005): 621 genes

DEG5_straineK.treatmenttm <- subset(result5_straineK.treatmenttm_shrink_ashr_df,
                                 (result5_straineK.treatmenttm_shrink_ashr_df$padj < 0.005))


DEG5_straineK.treatmenttm <- tibble::rownames_to_column(DEG5_straineK.treatmenttm, "Gene")
# -> 621 DEGs



DEG5_straineK.treatmenttm <- merge(DEG5_straineK.treatmenttm,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")

write.csv(DEG5_straineK.treatmenttm, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DEGs_straineK.treatmenttm.csv")

ggvenn: compare with section 3 DEG

ggvenn(list('section 3' = DEG3_straineK.treatmenttm$Gene,
            'section 5 (all samples)' = DEG5_straineK.treatmenttm$Gene),
       c("section 3",
         "section 5 (all samples)"))

Export these intersected 544 genes

DEG5_DEG3_straineK.treatmenttm <-
DEG5_straineK.treatmenttm[DEG5_straineK.treatmenttm$Gene %in% intersect(DEG3_straineK.treatmenttm$Gene,DEG5_straineK.treatmenttm$Gene),]

write.csv(DEG5_DEG3_straineK.treatmenttm, file = "DEG_Interaction/07_intersect-03_05/DEGs_straineK.treatmenttm.csv")

`straineK.treatment35C`

In order to compare with section 4, reference strain has to be ero1

dds_wald_local_5$strain <- relevel(dds_wald_local_5$strain, ref="ero1")

dds_wald_local_5 <- nbinomWaldTest(dds_wald_local_5)

# check
resultsNames(dds_wald_local_5)

Extract results of the interaction term `straineK.treatment35C`

result5_straineK.treatment35C <-results(dds_wald_local_5,
                                 name="straineK.treatment35C",
                                 alpha = 0.05,
                                 lfcThreshold = 0, # default
                                 independentFiltering = TRUE,
                                 pAdjustMethod = "fdr")



result5_straineK.treatment35C_df <- as.data.frame(result5_straineK.treatment35C)
result5_straineK.treatment35C_df <- result5_straineK.treatment35C_df[order(result5_straineK.treatment35C_df$padj),]




# check if any genes has baseMean = 0?
result5_straineK.treatment35C_df[result5_straineK.treatment35C_df$baseMean == 0,]
# 0 genes

# check if there are any outlier: pvalue and padj = NA?
result5_straineK.treatment35C_df[is.na(result5_straineK.treatment35C_df$pvalue) & is.na(result5_straineK.treatment35C_df$padj),]
# -> 8 genes 是 outlier

# check how many genes were filtered by automatic independent filtering, for having a low mean normalized count: only padj = NA?
result5_straineK.treatment35C_df[is.na(result5_straineK.treatment35C_df$padj) & !is.na(result5_straineK.treatment35C_df$pvalue),]
# -> 有 230 個 genes 被 independent filtered

metadata(result5_straineK.treatment35C)$filterThreshold
# DESeq2 has filtered out genes with a mean count of 41.12458
# as a result, 3.877551% of genes were filtered out of the analysis


result5_straineK.treatment35C_df <- na.omit(result5_straineK.treatment35C_df) # -> 5689 gene

write.csv(result5_straineK.treatment35C_df, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DESeq2_res_straineK.treatment35C_no.lfcShrink.csv")

lfcShrink

# "ashr"
result5_straineK.treatment35C_shrink_ashr <- lfcShrink(dds_wald_local_5,
                                      type="ashr",
                                      res = result5_straineK.treatment35C)

############################
# -> ashr seems to be better
result5_straineK.treatment35C_shrink_ashr_df <- as.data.frame(result5_straineK.treatment35C_shrink_ashr)
result5_straineK.treatment35C_shrink_ashr_df <- result5_straineK.treatment35C_shrink_ashr_df[order(result5_straineK.treatment35C_shrink_ashr_df$padj),]

result5_straineK.treatment35C_shrink_ashr_df <- na.omit(result5_straineK.treatment35C_shrink_ashr_df)


write.csv(result5_straineK.treatment35C_shrink_ashr_df, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DESeq2_res_straineK.treatment35C_lfcShrink.csv")

DEG (padj<0.005): 434 genes

DEG5_straineK.treatment35C <- subset(result5_straineK.treatment35C_shrink_ashr_df,
                                 (result5_straineK.treatment35C_shrink_ashr_df$padj < 0.005))


DEG5_straineK.treatment35C <- tibble::rownames_to_column(DEG5_straineK.treatment35C, "Gene")
# -> 434 DEGs



DEG5_straineK.treatment35C <- merge(DEG5_straineK.treatment35C,
                             geneID_transform %>% dplyr::select(Gene, gene_name),
                             by = "Gene")

write.csv(DEG5_straineK.treatment35C, file = "DEG_Interaction/05_WT&ero1&eK.vs.tm&35C&25C/DEGs_straineK.treatment35C.csv")

ggvenn: compare with section 4 DEG

ggvenn(list('section 4' = DEG4_straineK.treatment35C$Gene,
            'section 5 (all samples)' = DEG5_straineK.treatment35C$Gene),
       c("section 4",
         "section 5 (all samples)"))

Export these intersected 396 genes

DEG5_DEG4_straineK.treatment35C <-
DEG5_straineK.treatment35C[DEG5_straineK.treatment35C$Gene %in% intersect(DEG4_straineK.treatment35C$Gene,DEG5_straineK.treatment35C$Gene),]

write.csv(DEG5_DEG4_straineK.treatment35C, file = "DEG_Interaction/06_intersect-04_05/DEGs_straineK.treatment35C.csv")

← Back to projects

Goal:

What is “interaction term”?

However, we SPLIT the samples to *different sample sets *before performing DESeq2.

The idea is that because an interaction term can appear in different sample sets

Workflow:

Example:

Library and Data Import

Split samples to 4 sample sets and discover DEGs in interaction terms

Sample set 1: WT_25C / ero1_25C / WT_tm / ero1_tm

Subset

Pre-filter and DESeq2

plotDispEsts: inspect the fit; this example uses fitType = local throughout

Check resultsNames: the first factor level is the reference

**DEGs of **strainero1.treatmenttm

Extract results of the interaction term strainero1.treatmenttm

lfcShrink (ashr)

DEG (padj<0.005): 972 genes

Sample set 2: WT_25C / ero1_25C / WT_35C / ero1_35C

Subset

Pre-filter and DESeq2

plotDispEsts: inspect the fit; this example uses fitType = local throughout

Check ResultNames

**DEGs of **strainero1.treatment35C

Extract results of the interaction term strainero1.treatment35C

lfcShrink (ashr)

DEG (padj<0.005):** 3051 genes**

Sample set 3: ero1_25C / eK_25C / ero1_tm / eK_tm

Subset

Pre-filter and DESeq2

plotDispEsts: inspect the fit; this example uses fitType = local throughout

Check ResultNames

**DEGs of **straineK.treatmenttm

Extract results of the interaction term straineK.treatmenttm

lfcShrink (ashr)

DEG (padj<0.005):** 636 genes**

Sample set 4: ero1_25C / eK_25C / ero1_35C / eK_35C

Subset

Pre-filter and DESeq2

plotDispEsts: inspect the fit; this example uses fitType = local throughout

Check ResultNames

**DEGs of **straineK.treatment35C

Extract results of the interaction term straineK.treatment35C

lfcShrink

DEG (padj<0.005):** 636 genes**

Using all sample (not split) to discover DEGs in interaction terms

Subset all necessary samples

Pre-filter and DESeq2

plotDispEsts: inspect the fit; this example uses fitType = local throughout

Check ResultNames

Intersection

strainero1.treatmenttm

In order to compare with section 1, reference strain has to be WT

Extract results of the interaction term strainero1.treatmenttm

lfcShrink

DEG (padj<0.005):** 1053 genes**

ggvenn: compare with section 3 DEG

Export these intersected 904 genes

strainero1.treatment35C

In order to compare with section 2, reference strain has to be WT

Extract results of the interaction term strainero1.treatment35C

lfcShrink

DEG (padj<0.005):** 3302 genes**

ggvenn: compare with section 3 DEG

Export these intersected 3021 genes

straineK.treatmenttm

In order to compare with section 3, reference strain has to be ero1

Extract results of the interaction term straineK.treatmenttm

lfcShrink

DEG (padj<0.005):** 621 genes**

ggvenn: compare with section 3 DEG

Export these intersected 544 genes

straineK.treatment35C

In order to compare with section 4, reference strain has to be ero1

Extract results of the interaction term straineK.treatment35C

lfcShrink

DEG (padj<0.005):** 434 genes**

ggvenn: compare with section 4 DEG

Export these intersected 396 genes

However, we SPLIT the samples to different sample sets before performing DESeq2.

DEGs of `strainero1.treatmenttm`

Extract results of the interaction term `strainero1.treatmenttm`

DEGs of `strainero1.treatment35C`

Extract results of the interaction term `strainero1.treatment35C`

DEG (padj<0.005): 3051 genes

DEGs of `straineK.treatmenttm`

Extract results of the interaction term `straineK.treatmenttm`

DEG (padj<0.005): 636 genes

DEGs of `straineK.treatment35C`

Extract results of the interaction term `straineK.treatment35C`

DEG (padj<0.005): 636 genes

`strainero1.treatmenttm`

Extract results of the interaction term `strainero1.treatmenttm`

DEG (padj<0.005): 1053 genes

`strainero1.treatment35C`

Extract results of the interaction term `strainero1.treatment35C`

DEG (padj<0.005): 3302 genes

`straineK.treatmenttm`

Extract results of the interaction term `straineK.treatmenttm`

DEG (padj<0.005): 621 genes

`straineK.treatment35C`

Extract results of the interaction term `straineK.treatment35C`

DEG (padj<0.005): 434 genes
