vstHeatmapWithClustering creates an expression heatmap from VST-transformed counts and groups genes by their temporal expression patterns.
The function uses three R packages: pheatmap, reshape2, and ggplot2.
Outputs
Starting from a VST-transformed matrix from the time-series DESeq2 workflow:

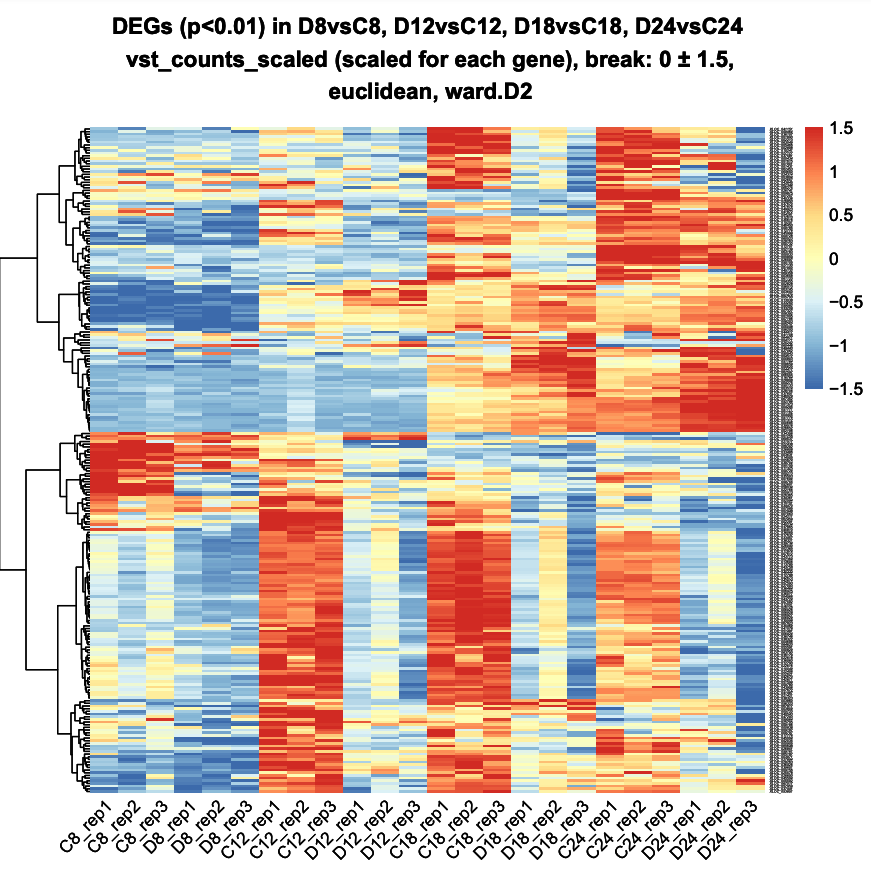

- Figure 1: Plot a heatmap with clustered genes.

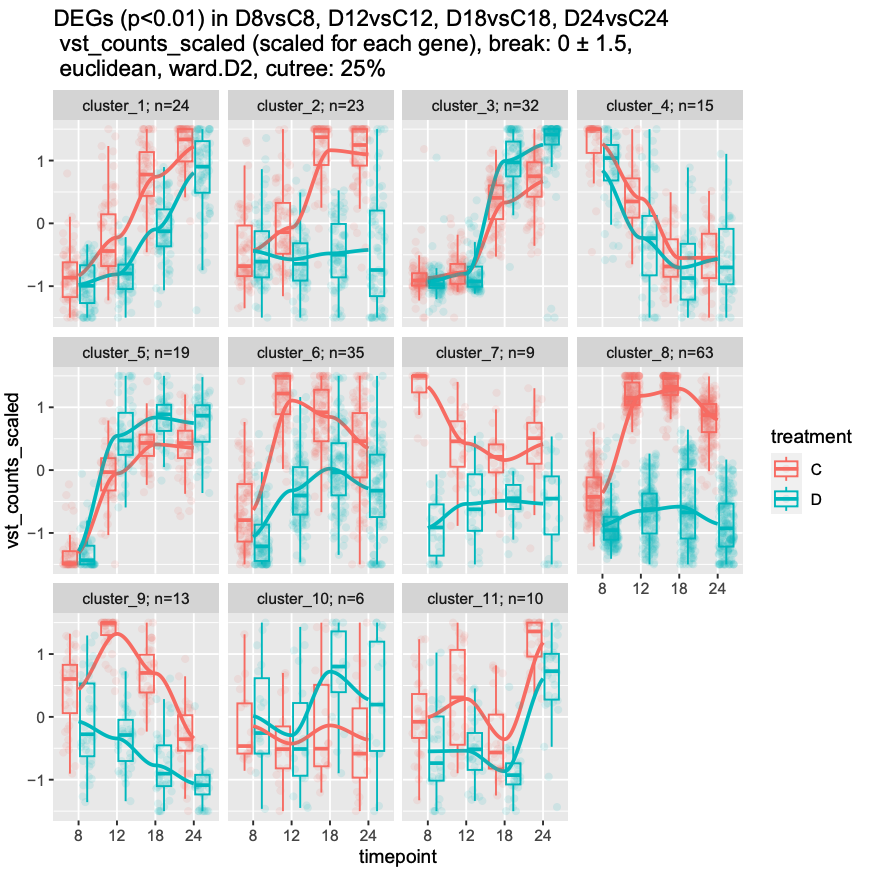

- Figure 2: plot gene-expression trajectories over time and group genes with similar temporal patterns.
- Each gene will be scaled in
vstHeatmapWithClustering
Example
Inputs
vst_matrix
- Required to be a vst transformed matrix.
- colnames (i.e., sample names) required to be “treatment + timepoint + replicate” with** delimited syntax：**
| ctrl_8.rep1 | ctrl_8.rep2 | ctrl_8.rep3 | d_8.rep1 | d_8.rep2 | d_8.rep3 |
metadata
- The metadata used in DESeq2.
group_rep_delim
- The delimiter between
groupandreplicate number
treatment_timepoint_delim
- The delimiter between
treatmentandtimepoint
PatternCluster
- Whether to produce the temporal-pattern plot (Figure 2).
Code to define the vstHeatmapWithClustering** function**
# visualize the heatmap (vst counts) and pattern clustering plot
# matrix has to be vst() output
# colnames has to be "treatment+timepoint_replicate" (e.g., "C8_rep1")
# Written by Chun-Ting Lin <jordan841220@gmail.com>, Aug 2023
vstHeatmapWithClustering <- function(vst_matrix = vst_matrix, # matrix has to be vst() output
metadata = metadata, # metadata
value_break = 1.5, # default: 0 +- 1,5
heatmap_title = "Heatmap",
clustering_distance_rows = "euclidean",
clustering_method = "ward.D2",
fontsize_row = 2,
angle_col = "45",
PatternCluster = FALSE,
group_rep_delim = ".", # delim between group and replicate number
treatment_timepoint_delim = "_", # delim between treatment and timepoint
PatternCluster_height = 0.25,
PatternCluster_csv.file = "cluster_results.csv",
PatternCluster_txt.file = "cluster_results.txt",
PatternCluster_boxplot_alpha = 0.1,
PatternCluster_boxplot_dodge = 0.9,
PatternCluster_smooth_span = 0.7,
PatternCluster_point_alpha = 0.1,
PatternCluster_point_dodge = 0.9,
PatternCluster_title = "Pattern"){
if (missing(group_rep_delim)) {
stop("delim between timepoint and repicate in sample name is missing.")}
else if (missing(treatment_timepoint_delim)) { stop("delim between treatment and timepoint in sample name is missing.") }
else {
# scale and centering
# (because scale() work on each column, t() is necessary if we want to scale each genes)
matrix_scale <- t(scale(t(vst_matrix)))
matrix_scale_df <- as.data.frame(matrix_scale)
# set color and break
matrix_scale_df[matrix_scale_df < -value_break] <- -value_break
matrix_scale_df[matrix_scale_df > value_break] <- value_break
newnames <- lapply(
rownames(matrix_scale_df),
function(x) bquote(italic(.(x))))
################################
# heatmap (for all timepoint and treatment)
###################################
ph <- pheatmap::pheatmap(matrix_scale_df,
show_rownames = T,
breaks=seq(from=-value_break, to=value_break, length=101),
fontsize_row = fontsize_row,
labels_row = as.expression(newnames),
cluster_col=FALSE,
angle_col = angle_col,
cluster_rows = TRUE,
clustering_distance_rows = clustering_distance_rows,
clustering_method = clustering_method,
border_color = NA,
main = heatmap_title)
if (PatternCluster) {
###################################
# extract clustering results
###################################
# say i want to cut at 25% height of the dendrogram
cluster_df_1 <- cbind(matrix_scale_df,
cluster = cutree(ph$tree_row,
h= PatternCluster_height*max(ph$tree_row$height)))
cluster_df <- cluster_df_1
cluster_df$cluster <- lapply(cluster_df_1$cluster, function(x) paste0('cluster_',x))
cluster_df <- tibble::rownames_to_column(cluster_df, "Gene")
# convert this data frame to the "classical" format
cluster_df <- as.data.frame(lapply(cluster_df, unlist))
write.csv(cluster_df,
file = PatternCluster_csv.file,
row.names = F)
write.table(cluster_df,
file = PatternCluster_txt.file,
row.names = F,
col.names = T,
quote = F,
sep = '\t')
###################################
# prepare for ggplot2
###################################
# melt
cluster_df <- reshape2::melt(cluster_df, id = c("Gene","cluster"))
colnames(cluster_df) <- c("Gene","cluster","sample","expression")
# split "C8_rep1" to "C8" and "rep1"...
cluster_df <- tidyr::separate_wider_delim(cluster_df,
cols = sample,
delim = group_rep_delim,
names = c("sample", "replicate"))
# extract treatment and timepoint columns
cluster_df <-
tidyr::separate_wider_delim(cluster_df,
cols = sample,
delim = treatment_timepoint_delim,
names = c("treatment", "timepoint"))
# factor the column so facet_wrap can arrange facet alphabetically
cluster_df$treatment <- factor(cluster_df$treatment, levels = levels(metadata$treatment))
cluster_df$timepoint <- factor(cluster_df$timepoint, levels = levels(metadata$timepoint))
cluster_df$replicate <- factor(cluster_df$replicate, levels = levels(metadata$rep))
cluster_df$cluster <- factor(cluster_df$cluster,
levels = paste0("cluster_",1:max(cluster_df_1$cluster)))
# add the number of genes
cluster_df <-
cluster_df %>%
group_by(cluster) %>%
mutate(cluster_count = n_distinct(Gene)) %>%
ungroup() %>%
mutate(facet_label = paste0(cluster,
"; n=", cluster_count))
# factor the facet_label column so facet_wrap can arrange facet alphabetically
cluster_df$facet_label <- factor(cluster_df$facet_label,
levels = unique(cluster_df$facet_label))
plot_PatternCluster <- ggplot(cluster_df) +
geom_boxplot(aes(x=timepoint,
y=expression,
color=treatment),
alpha = PatternCluster_boxplot_alpha,
outlier.colour = NA,
position=position_dodge(width=PatternCluster_boxplot_dodge)) +
geom_smooth(aes(x = as.numeric(factor(timepoint)),
y = expression,
color = treatment),
span = PatternCluster_smooth_span,
se = F,
method = "loess")+
geom_point(aes(x = as.numeric(factor(timepoint)),
y = expression,
color = treatment),
alpha = PatternCluster_point_alpha,
position=position_jitterdodge(dodge.width=PatternCluster_point_dodge)) +
facet_wrap(~facet_label) +
ggtitle(PatternCluster_title)
return(list(ph,plot_PatternCluster))
} else {
return(ph)
}
}
}
